British 1:87 Scale Modelling - Kleinspoor Class 77 Co-Co electric loco

Class 77 Co-Co type EM2 electric locomotive (kit)

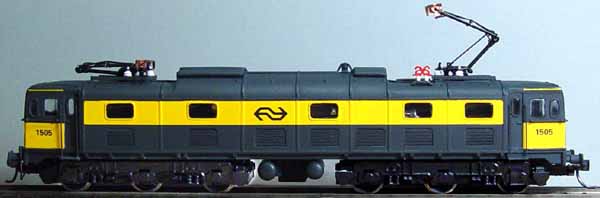

Kleinspoor Class 77 Co-Co type EM2 electric locomotive as NS1505 by Phil Burkett

Prototype

Operating company/organisation

BR (as Type EM2 and Class 77)
NS (as class 1500)

Years of operation

In Britain, on the Woodhead line: 1952-1968.
In the Netherlands: 1970+

Technical data

Voltage: 1500 V DC overhead.

Model

Manufacturer and supplier

Kleinspoor

Construction

Resin body. Specially cast metal chassis that accepts trucks and drive gear from Athearn PA1/PB1 locomotive (previously but no longer supplied).

"The construction set includes a cast resin hood, vacuum shaped windows, white metal parts, brass flywheels. ... also contains PCBs, LEDs and resistors for the changing front lighting.... You need to purchase separately paint, transfers, Sommerfeldt pantographs (no.927), Mashima 18x33 motor [or equivalent], and handrail holders."

Motive power

Not included in kit: motor, trucks & drive gear, pantographs.

Price

€148 [AUG25].

Availability

Originally released 1998. Rereleased with modifications 2003. Available in 2025.

Reviews

Background information: Scale Model Trains, October 1988
Nürnberg report item: Continental Modeller, April 1998
Discussed in: Satellite 1:87 issue 3
Full review in Satellite 1:87 issue 45
